Technical Datasheet

KoKonna AI E-Ink Frame Specification Sheet

The first full-color e-ink art frame capable of voice-based image generation. Below is the consolidated specification sheet for the 4-inch, 7.3-inch, 13.3-inch, and 28.5-inch models, suitable for customer selection, channel presentation, and business materials.

Display Technology: E Ink Spectra TM 6 Full Color
Connectivity: Wi-Fi 2.4G / BLE
Charging Port: Type-C
Certifications: FCC / CE / ROHS / SRRC / KC / PSE / UN38.3 / UL
Size Filter

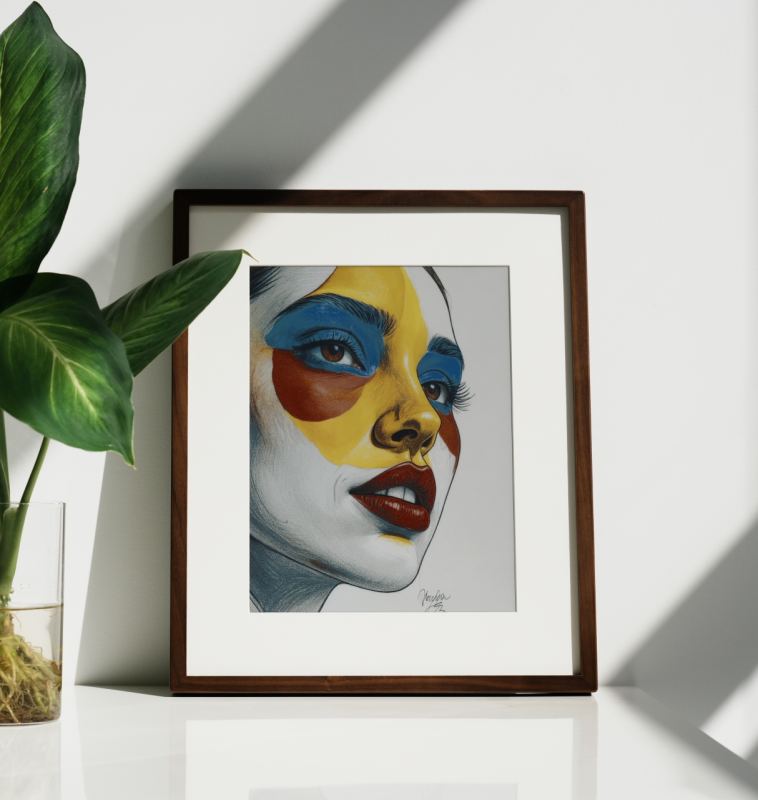

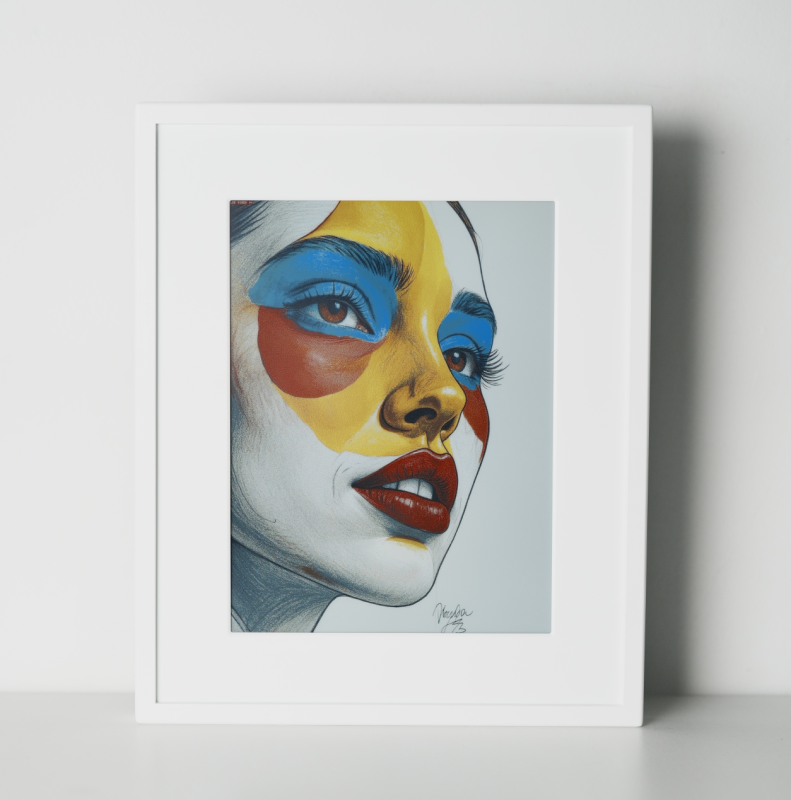

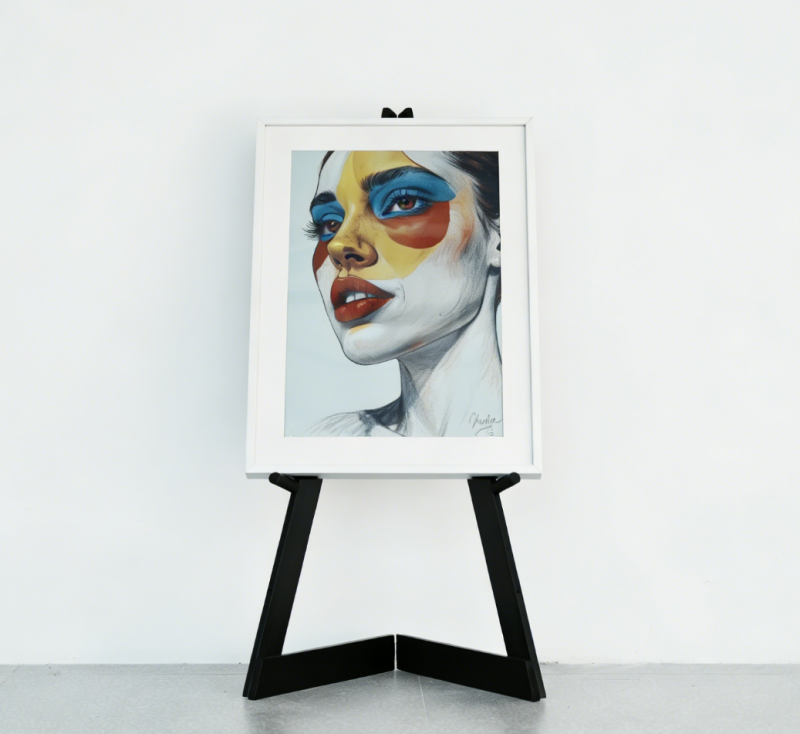

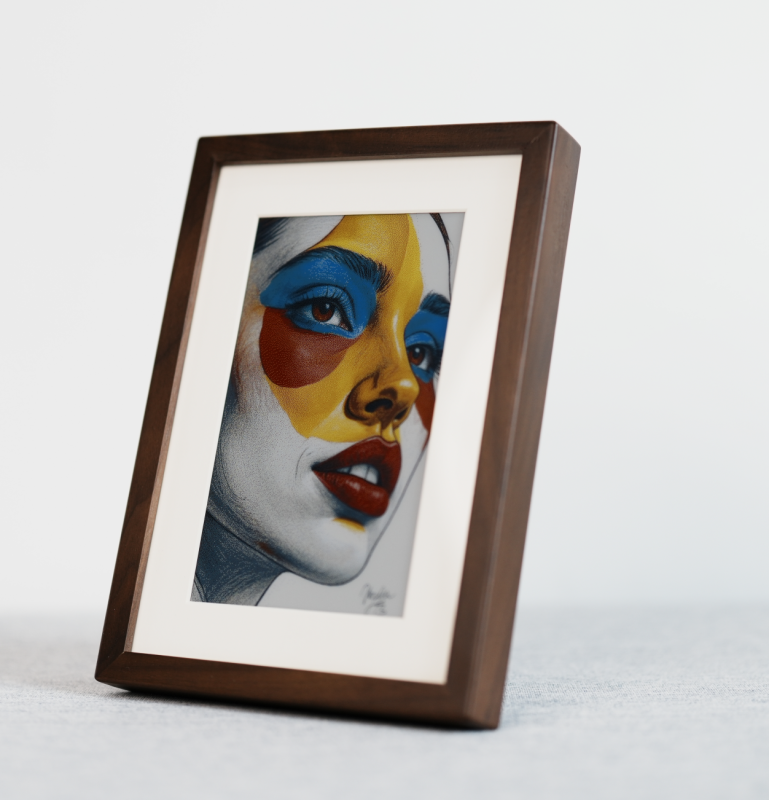

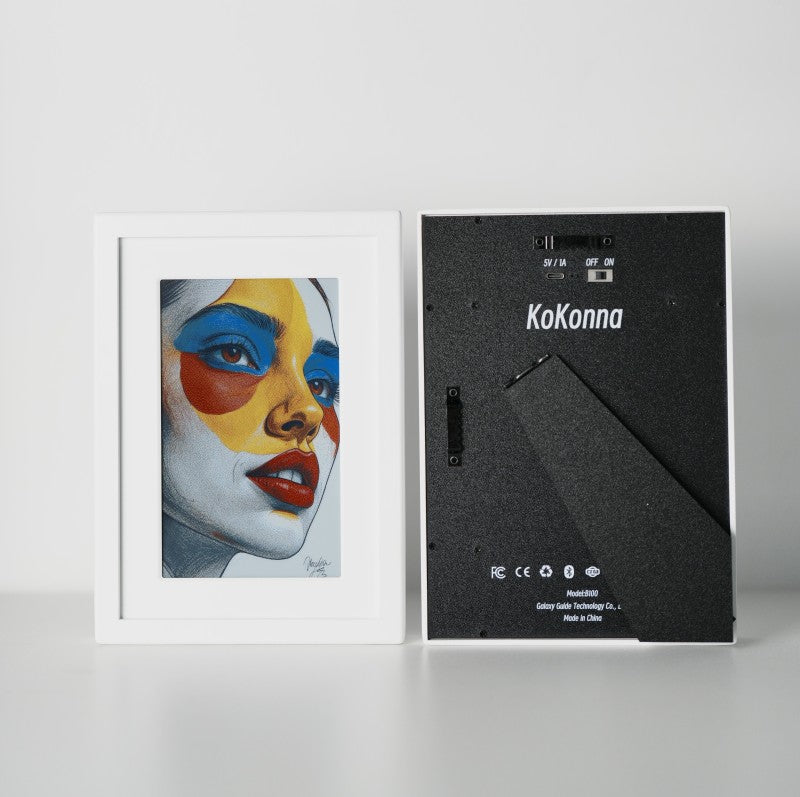

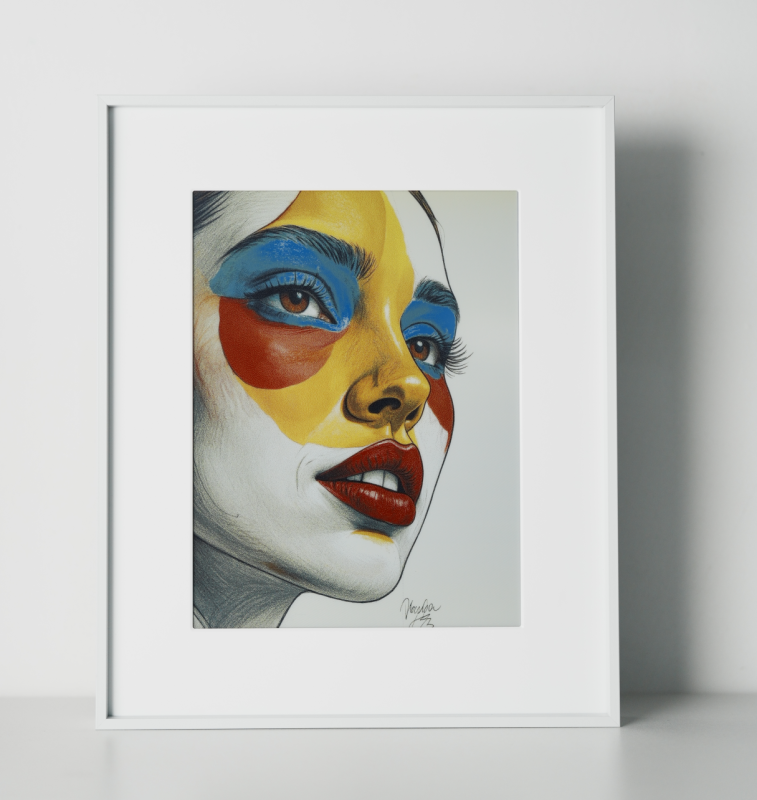

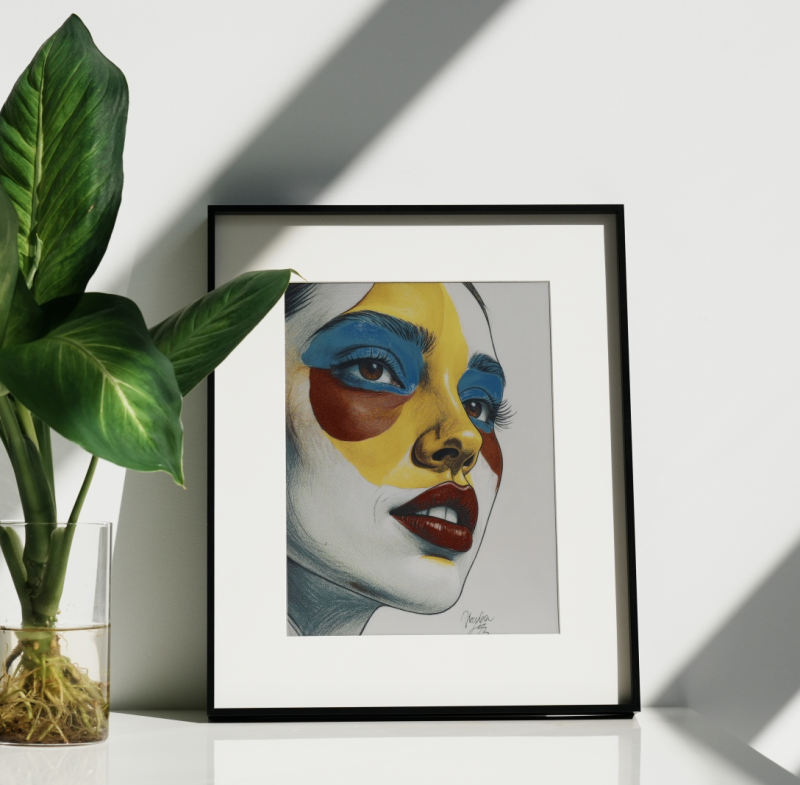

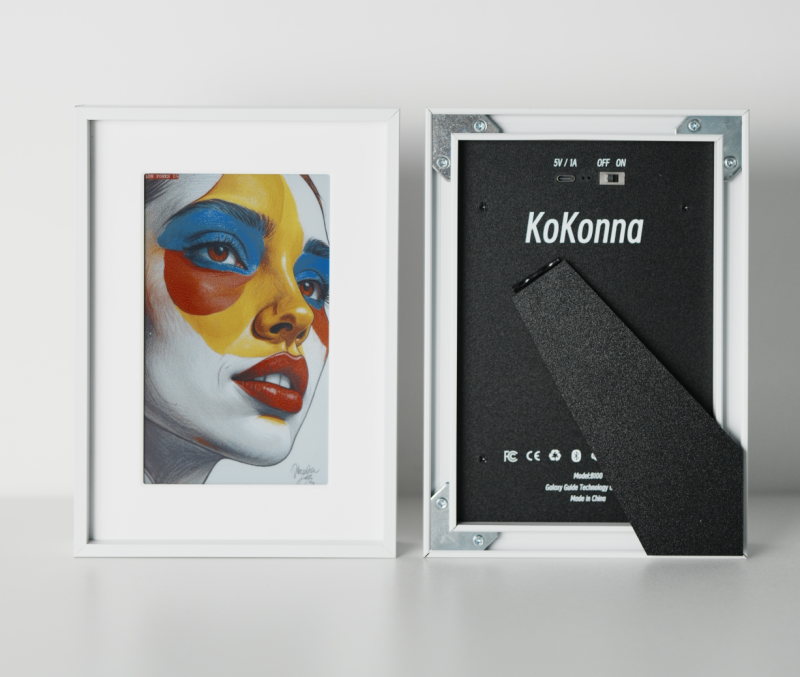

Parameter 4" Walnut 4" Walnut 7.3" Aluminum 7.3" Aluminum 7.3" White Metal 7.3" White Metal 7.3" Walnut 7.3" Walnut 7.3" White Wood 7.3" White Wood 13.3" Aluminum 13.3" Aluminum 13.3" White Metal 13.3" White Metal 13.3" Walnut 13.3" Walnut 13.3" White Wood 13.3" White Wood 28.5" Aluminum 28.5" Aluminum 28.5" White Metal 28.5" White Metal
Barcode 06979085680060 06979085680015 06979085680336 06979085680053 06979085680329 06979085680022 06979085680305 06979085680046 06979085680312 06979085680077 06979085680503
Display Specifications
Display Model E Ink Spectra TM 6 Full Color E Ink Spectra TM 6 Full Color E Ink Spectra TM 6 Full Color E Ink Spectra TM 6 Full Color E Ink Spectra TM 6 Full Color E Ink Spectra TM 6 Full Color E Ink Spectra TM 6 Full Color E Ink Spectra TM 6 Full Color E Ink Spectra TM 6 Full Color E Ink Spectra TM 6 Full Color E Ink Spectra TM 6 Full Color
Display Size 66 (H) × 99 (V) mm 170.2 (H) × 111.2 (V) mm 170.2 (H) × 111.2 (V) mm 170.2 (H) × 111.2 (V) mm 170.2 (H) × 111.2 (V) mm 208.8 (H) × 284.7 (V) mm 208.8 (H) × 284.7 (V) mm 208.8 (H) × 284.7 (V) mm 208.8 (H) × 284.7 (V) mm 424 (H) × 652.55 (V) mm 424 (H) × 652.55 (V) mm
Resolution 400 (H) × 600 (V) 480 (H) × 800 (V) 480 (H) × 800 (V) 480 (H) × 800 (V) 480 (H) × 800 (V) 1200 (H) × 1600 (V) 1200 (H) × 1600 (V) 1200 (H) × 1600 (V) 1200 (H) × 1600 (V) 2160 (H) × 3060 (V) 2160 (H) × 3060 (V)
PPI 180 127 127 127 127 150 150 150 150 131 131
Appearance & Structure
Frame Color Walnut Matte Black Matte White Walnut White Wood Matte Black Matte White Walnut White Wood Matte Black Matte White
Frame Material Solid Walnut Aluminum Alloy Aluminum Alloy Solid Walnut Beech Wood Aluminum Alloy Aluminum Alloy Solid Walnut Beech Wood Aluminum Alloy Aluminum Alloy
Net Weight (N.W.) 0.26 KG 0.66 KG 0.66 KG 0.55 KG 0.55 KG 1.48 KG 1.48 KG 1.32 KG 1.32 KG 5.4 KG 5.4 KG
Product Dimensions 133 × 105 × 28 mm 226 × 163 × 35 mm 226 × 163 × 35 mm 226 × 163 × 25 mm 226 × 163 × 25 mm 385 × 320 × 35 mm 385 × 320 × 35 mm 385 × 320 × 25 mm 385 × 320 × 25 mm 730 × 550 × 38 mm 730 × 550 × 38 mm
Packaging & Logistics
Gross Weight (Gift Box) (G.W.) 0.48 KG 1.05 KG 1.05 KG 0.95 KG 0.95 KG 2.4 KG 2.4 KG 2.4 KG 2.4 KG 8.75 KG 8.75 KG
Gross Weight with Shipping Carton 0.6 KG 1.25 KG 1.25 KG 1.15 KG 1.15 KG 2.8 KG 2.8 KG 2.7 KG 2.7 KG - -
Outer Carton Gross Weight 10.1 KG 11.05 KG 11.05 KG 10.2 KG 10.2 KG 13.5 KG 13.5 KG 12.8 KG 12.8 KG 9.75 KG 9.75 KG
Gift Box Dimensions 145 × 172 × 57 mm 270 × 210 × 65 mm 270 × 210 × 65 mm 270 × 210 × 65 mm 270 × 210 × 65 mm 427 × 372 × 65 mm 427 × 372 × 65 mm 427 × 372 × 65 mm 427 × 372 × 65 mm 790 × 610 × 70 mm 790 × 610 × 70 mm
Outer Carton Dimensions (C/T SIZE) 305 × 300 × 360 mm 557 × 343 × 225 mm 557 × 343 × 225 mm 557 × 343 × 225 mm 557 × 343 × 225 mm 440 × 338 × 391 mm 440 × 338 × 391 mm 440 × 338 × 391 mm 440 × 338 × 391 mm 825 × 632 × 90 mm 825 × 632 × 90 mm
Qty / Carton 20 pcs 10 pcs 10 pcs 10 pcs 10 pcs 5 pcs 5 pcs 5 pcs 5 pcs 1 pcs 1 pcs
Power & Connectivity
Connectivity Wi-Fi 2.4G / BLE Wi-Fi 2.4G / BLE Wi-Fi 2.4G / BLE Wi-Fi 2.4G / BLE Wi-Fi 2.4G / BLE Wi-Fi 2.4G / BLE Wi-Fi 2.4G / BLE Wi-Fi 2.4G / BLE Wi-Fi 2.4G / BLE Wi-Fi 2.4G / BLE Wi-Fi 2.4G / BLE
Battery Type Lithium Battery Lithium Battery Lithium Battery Lithium Battery Lithium Battery Lithium Battery Lithium Battery Lithium Battery Lithium Battery Lithium Battery Lithium Battery
Battery Capacity 5000 mAh 5000 mAh 5000 mAh 5000 mAh 5000 mAh 5000 mAh 5000 mAh 5000 mAh 5000 mAh 5000 mAh 5000 mAh
Usage Time Approx. 1 year Approx. 1 year Approx. 1 year Approx. 1 year Approx. 1 year Approx. 1 year Approx. 1 year Approx. 1 year Approx. 1 year Approx. 1 year Approx. 1 year
Charging Time 8-10 hours 8-10 hours 8-10 hours 8-10 hours 8-10 hours 8-10 hours 8-10 hours 8-10 hours 8-10 hours 8-10 hours 8-10 hours
Standby Time Approx. 1 year Approx. 1 year Approx. 1 year Approx. 1 year Approx. 1 year Approx. 1 year Approx. 1 year Approx. 1 year Approx. 1 year Approx. 1 year Approx. 1 year
Charging Voltage 5V 5V 5V 5V 5V 5V 5V 5V 5V 5V 5V
Charging Current 1A 1A 1A 1A 1A 1A 1A 1A 1A 1A 1A
Charging Interface Type-C Charging Port Type-C Charging Port Type-C Charging Port Type-C Charging Port Type-C Charging Port Type-C Charging Port Type-C Charging Port Type-C Charging Port Type-C Charging Port Type-C Charging Port Type-C Charging Port
Environment & Standards
Operating Temperature 0℃ ~ 50℃ 0℃ ~ 50℃ 0℃ ~ 50℃ 0℃ ~ 50℃ 0℃ ~ 50℃ 0℃ ~ 50℃ 0℃ ~ 50℃ 0℃ ~ 50℃ 0℃ ~ 50℃ 0℃ ~ 50℃ 0℃ ~ 50℃
Storage Temperature -20℃ ~ 60℃ -20℃ ~ 60℃ -20℃ ~ 60℃ -20℃ ~ 60℃ -20℃ ~ 60℃ -20℃ ~ 60℃ -20℃ ~ 60℃ -20℃ ~ 60℃ -20℃ ~ 60℃ -20℃ ~ 60℃ -20℃ ~ 60℃
Certifications FCC, CE, ROHS, SRRC, KC, PSE, UN38.3, UL, Test Report
HSCODE 8524999090 8524999090 8524999090 8524999090 8524999090 8524999090 8524999090 8524999090 8524999090 8524999090 8524999090
Product Overview
Description

The KoKonna AI E-Ink Frame combines the eye-friendly benefits of a full-color e-ink display with AI image generation technology, redefining the interactive experience of digital art frames. It integrates three core features: voice-generated artwork, AI style transfer for real photos, and AI doodle creation.

It is well suited for home decor, office styling, and gifting scenarios, bringing together technology, art, intelligent interaction, and emotional connection in a single product.
Key Features
  1. Supports open-topic voice conversations with KoKonna and generates artwork in real time based on the dialogue.
  2. Supports AI painting, image-to-image, text-to-image, and AI style transfer for real photos, with more than 100 styles available.
  3. Supports AI doodling to quickly turn sketches into personalized artwork.
  4. Uses a full-color e-ink display with no backlight and no flicker for eye comfort and premium presentation.
  5. Ultra-low-power design enables long usage after one charge and flexible placement without exposed wires.
  6. Supports remote artwork switching via app, multi-user sharing, and information widgets such as weather, calendar, news, and memos.
  7. Includes hundreds of classic artworks and access to more than 1,000 museum-level masterpieces.
Packing List Main Unit × 1, Gift Box × 1, User Manual × 1, Type-C Charging Cable × 1

Note: The specifications on this page are intended for customer presentation and business reference. Final configuration, package size, and weight are subject to the final production version and official quotation.
